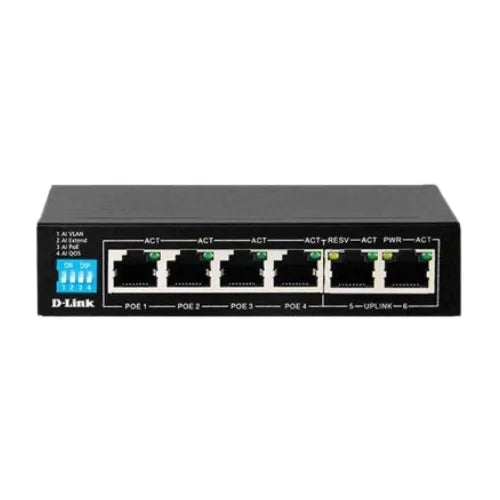

The DES‑F1006P‑E is a compact, unmanaged PoE+ switch engineered for reliable plug‑in performance in surveillance and small office deployments. With 4 PoE+ ports and 2 uplinks, it allows powering of IP cameras, WAPs or VoIP phones over a single Ethernet cable without external power.
-
🛠️ Easy Setup: Zero configuration required—just plug in, and it's ready.
-
PoE On Ports 1–4: IEEE 802.3af/at compliant, up to 30 W per port; total 60 W budget
-
Long‑Reach Feature: Extend mode supports PoE up to 250 meters (at reduced speeds), ideal for remote camera setups
-
Auto MDI/MDI‑X and Flow Control: Simplifies cabling and reduces packet loss even under heavy traffic
-
Capacity & Speed: 1.2 Gbps switching fabric; up to 148,800 pps at 100 Mbps
-
Fanless, Quiet Design: Perfect for noise‑sensitive environments; includes built‑in 6 kV lightning protection
Technical Specifications at a Glance
| Feature |
Specification |
| Ports |
4 PoE+ 10/100 Mbps ports; 2 uplink ports (10/100 Mbps) |
| PoE Standard |
IEEE 802.3af/at |
| Max PoE Budget |
60 W total, up to 30 W per port |
| Extend Mode Distance |
Up to 250 m over Cat5e/Cat6 cable |
| Switching Capacity |
1.2 Gbps |
| Packet Forwarding Rate |
Up to 148,800 pps (100 Mbps) |
| Auto MDI/MDI‑X & Flow Control |
Yes |
| Protection |
6 kV surge protection |
| Form Factor |
Fanless desktop, compact (125 × 75 × 27 mm) |
| Operating Environment |
0–40 °C, up to 95% RH |
